Basic concepts of grid layout
CSS grid layout introduces a two-dimensional grid system to CSS. Grids can be used to lay out major page areas or small user interface elements. This article introduces the CSS grid layout and the new terminology that is part of the CSS grid layout Level 1 specification. The features shown in this overview will then be explained in greater detail in the rest of this guide.
What is a grid?
A grid is a set of intersecting horizontal and vertical lines defining columns and rows. Elements can be placed onto the grid within these column and row lines. CSS grid layout has the following features:
Fixed and flexible track sizes
You can create a grid with fixed track sizes – using pixels for example. This sets the grid to the specified pixel which fits to the layout you desire. You can also create a grid using flexible sizes with percentages or with the fr unit designed for this purpose.
Item placement
You can place items into a precise location on the grid using line numbers, names or by targeting an area of the grid. Grid also contains an algorithm to control the placement of items not given an explicit position on the grid.
Creation of additional tracks to hold content
You can define an explicit grid with grid layout. The grid layout specification is flexible enough to add additional rows and columns when needed. Features such as adding "as many columns that will fit into a container" are included.
Alignment control
Grid contains alignment features so we can control how the items align once placed into a grid area, and how the entire grid is aligned.
Control of overlapping content
More than one item can be placed into a grid cell or area and they can partially overlap each other. This layering may then be controlled with the z-index property.
Grid is a powerful specification that, when combined with other parts of CSS such as flexbox, can help you create layouts that were previously impossible to build in CSS. It all starts by creating a grid in your grid container.
Grid container
We create a grid container by declaring display: grid or display: inline-grid on an element. As soon as we do this, all direct children of that element become grid items.
In this example, I have a containing div with a class of wrapper and, inside are five child elements.
<div class="wrapper">
<div>One</div>
<div>Two</div>
<div>Three</div>
<div>Four</div>
<div>Five</div>
</div>
I make the .wrapper a grid container.
.wrapper {
display: grid;
}
All the direct children are now grid items. In a web browser, you won't see any difference to how these items are displayed before turning them into a grid, as grid has created a single column grid for the items. At this point, you may find it useful to work with the Grid Inspector, available as part of Firefox's Developer Tools. If you view this example in Firefox and inspect the grid, you will see a small icon next to the value grid. Click this and then the grid on this element will be overlaid in the browser window.
As you learn and then work with the CSS grid layout, this tool will give you a better idea of what is happening with your grids visually.
If we want to start making this more grid-like we need to add column tracks.

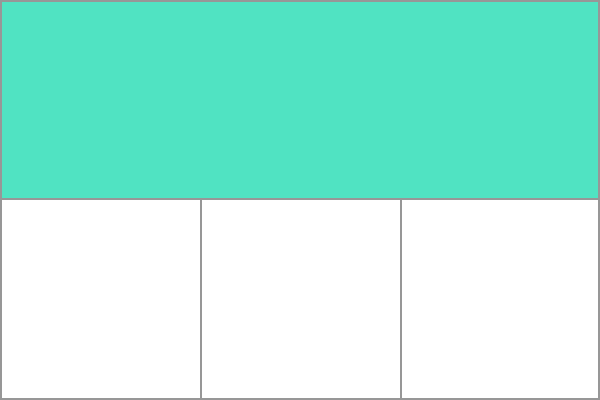

Grid tracks
We define rows and columns on our grid with the grid-template-rows and grid-template-columns properties. These define grid tracks. A grid track is the space between any two adjacent lines on the grid. The image below shows a highlighted track – this is the first-row track in our grid.
Grid tracks are defined in the explicit grid by using the grid-template-columns and grid-template-rows properties or the shorthand grid or grid-template properties. Tracks are also created in the implicit grid by positioning a grid item outside of the tracks created in the explicit grid.
Basic example
I can add to our earlier example by adding the grid-template-columns property, then defining the size of the column tracks.
I have now created a grid with three 200-pixel-wide column tracks. The child items will be laid out on this grid one in each grid cell.
<div class="wrapper">
<div>One</div>
<div>Two</div>
<div>Three</div>
<div>Four</div>
<div>Five</div>
</div>
.wrapper {
display: grid;
grid-template-columns: 200px 200px 200px;
}
The fr unit
Tracks can be defined using any length unit. Grid also introduces an additional length unit to help us create flexible grid tracks. The new fr unit represents a fraction of the available space in the grid container. The next grid definition would create three equal width tracks that grow and shrink according to the available space.
<div class="wrapper">
<div>One</div>
<div>Two</div>
<div>Three</div>
<div>Four</div>
<div>Five</div>
</div>
.wrapper {
display: grid;
grid-template-columns: 1fr 1fr 1fr;
}
Unequal sizes
In this next example, we create a definition with a 2fr track then two 1fr tracks. The available space is split into four. Two parts are given to the first track and one part each to the next two tracks.
<div class="wrapper">
<div>One</div>
<div>Two</div>
<div>Three</div>
<div>Four</div>
<div>Five</div>
</div>
.wrapper {
display: grid;
grid-template-columns: 2fr 1fr 1fr;
}
Mixing flexible and absolute sizes
In this final example, we mix absolute sized tracks with fr units. The first track is 500 pixels, so the fixed width is taken away from the available space. The remaining space is divided into three and assigned in proportion to the two flexible tracks.
<div class="wrapper">
<div>One</div>
<div>Two</div>
<div>Three</div>
<div>Four</div>
<div>Five</div>
</div>
.wrapper {
display: grid;
grid-template-columns: 500px 1fr 2fr;
}
Track listings with repeat() notation
Large grids with many tracks can use the repeat() notation, to repeat all or a section of the track listing. For example the grid definition:
.wrapper {
display: grid;
grid-template-columns: 1fr 1fr 1fr;
}
Can also be written as:
.wrapper {
display: grid;
grid-template-columns: repeat(3, 1fr);
}
Repeat notation can be used for a part of the track listing. In this next example I have created a grid with an initial 20-pixel track, then a repeating section of 6 1fr tracks then a final 20-pixel track.
.wrapper {
display: grid;
grid-template-columns: 20px repeat(6, 1fr) 20px;
}
Repeat notation takes the track listing, and uses it to create a repeating pattern of tracks. In this next example, my grid will consist of 10 tracks, a 1fr track, and then followed by a 2fr track. This pattern will be repeated five times.
.wrapper {
display: grid;
grid-template-columns: repeat(5, 1fr 2fr);
}
Implicit and explicit grids
When creating our example grid we specifically defined our column tracks with the grid-template-columns property, but the grid also created rows on its own. These rows are part of the implicit grid. Whereas the explicit grid consists of any rows and columns defined with grid-template-columns or grid-template-rows.
If you place something outside of the defined grid—or due to the amount of content, more grid tracks are needed—then the grid creates rows and columns in the implicit grid. These tracks will be auto-sized by default, resulting in their size being based on the content that is inside them.
You can also define a set size for tracks created in the implicit grid with the grid-auto-rows and grid-auto-columns properties.
In the below example, we use grid-auto-rows to ensure that tracks created in the implicit grid are 200 pixels tall.
<div class="wrapper">
<div>One</div>
<div>Two</div>
<div>Three</div>
<div>Four</div>
<div>Five</div>
</div>
.wrapper {
display: grid;
grid-template-columns: repeat(3, 1fr);
grid-auto-rows: 200px;
}
Track sizing and minmax
When setting up an explicit grid or defining the sizing for automatically created rows or columns we may want to give tracks a minimum size, but also ensure they expand to fit any content that is added. For example, I may want my rows to never collapse smaller than 100 pixels, but if my content stretches to 300 pixels in height, then I would like the row to stretch to that height.
Grid has a solution for this with the minmax() function. In this next example I am using minmax() in the value of grid-auto-rows. This means automatically created rows will be a minimum of 100 pixels tall, and a maximum of auto. Using auto means that the size will look at the content size and will stretch to give space for the tallest item in a cell, in this row.
.wrapper {
display: grid;
grid-template-columns: repeat(3, 1fr);
grid-auto-rows: minmax(100px, auto);
}
<div class="wrapper">
<div>One</div>
<div>
Two
<p>I have some more content in.</p>
<p>This makes me taller than 100 pixels.</p>
</div>
<div>Three</div>
<div>Four</div>
<div>Five</div>
</div>
Grid lines
It should be noted that when we define a grid we define the grid tracks, not the lines. Grid then gives us numbered lines to use when positioning items. In our three column, two row grid we have four column lines.

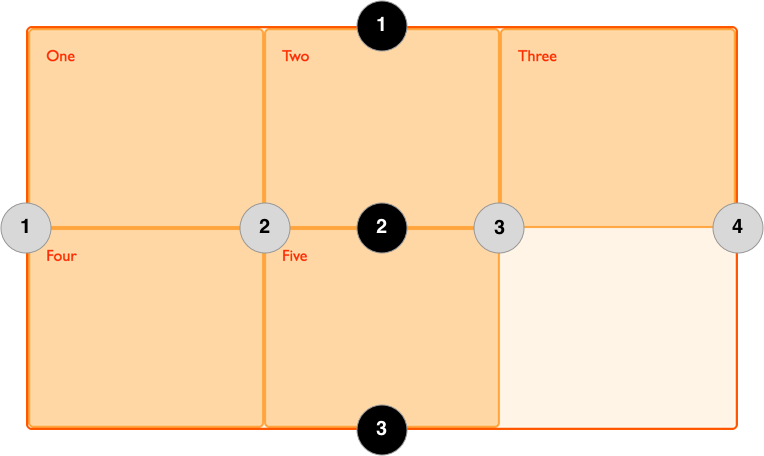

Lines are numbered according to the writing mode of the document. In a left-to-right language, line 1 is on the left-hand side of the grid. In a right-to-left language, it is on the right-hand side of the grid. Lines can also be named, and we will look at how to do this in a later guide in this series.
Positioning items against lines
We will be exploring line based placement in full detail in a later article. The following example demonstrates doing this in a simple way. When placing an item, we target the line – rather than the track.
In the following example I am placing the first two items on our three column track grid, using the grid-column-start, grid-column-end, grid-row-start and grid-row-end properties. Working from left to right, the first item is placed against column line 1, and spans to column line 4, which in our case is the far-right line on the grid. It begins at row line 1 and ends at row line 3, therefore spanning two row tracks.
The second item starts on grid column line 1, and spans one track. This is the default so I do not need to specify the end line. It also spans two row tracks from row line 3 to row line 5. The other items will place themselves into empty spaces on the grid.
<div class="wrapper">
<div class="box1">One</div>
<div class="box2">Two</div>
<div class="box3">Three</div>
<div class="box4">Four</div>
<div class="box5">Five</div>
</div>
.wrapper {
display: grid;
grid-template-columns: repeat(3, 1fr);
grid-auto-rows: 100px;
}
.box1 {
grid-column-start: 1;
grid-column-end: 4;
grid-row-start: 1;
grid-row-end: 3;
}
.box2 {
grid-column-start: 1;
grid-row-start: 3;
grid-row-end: 5;
}
Note: Don't forget that you can use the Grid Inspector in Firefox Developer Tools to see how the items are positioned against the lines of the grid.
Line-positioning shorthands
The longhand values used above can be compressed onto one line for columns with grid-column, and one line for rows with grid-row. The following example would give the same positioning as in the previous code, but with far less CSS. The value before the forward slash character (/) is the start line, the value after the end line.
You can omit the end value if the area only spans one track.
.wrapper {
display: grid;
grid-template-columns: repeat(3, 1fr);
grid-auto-rows: 100px;
}
.box1 {
grid-column: 1 / 4;
grid-row: 1 / 3;
}
.box2 {
grid-column: 1;
grid-row: 3 / 5;
}
Grid cells

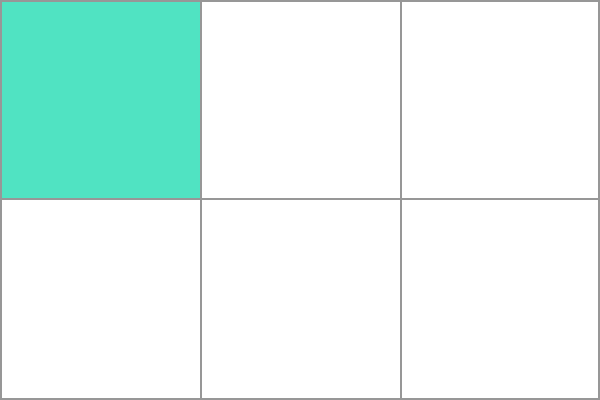

A grid cell is the smallest unit on a grid. Conceptually it is like a table cell. As we saw in our earlier examples, once a grid is defined as a parent the child items will lay themselves out in one cell each of the defined grid. In the below image, I have highlighted the first cell of the grid.
Grid areas

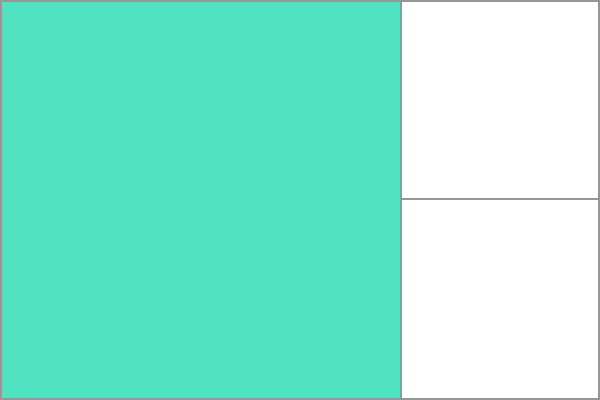

Items can span one or more cells both by row or by column, and this creates a grid area. Grid areas must be rectangular – it isn't possible to create an L-shaped area for example. The highlighted grid area spans two row and two column tracks.
Gutters
Gutters or alleys between grid cells can be created using the column-gap and row-gap properties, or the shorthand gap. In the below example, I am creating a 10-pixel gap between columns and a 1em gap between rows.
.wrapper {
display: grid;
grid-template-columns: repeat(3, 1fr);
column-gap: 10px;
row-gap: 1em;
}
Note: When grid first shipped in browsers the column-gap, row-gap and gap were prefixed with the grid- prefix as grid-column-gap, grid-row-gap and grid-gap respectively.
Browsers all now support unprefixed values, however the prefixed versions will be maintained as aliases making them safe to use.
<div class="wrapper">
<div>One</div>
<div>Two</div>
<div>Three</div>
<div>Four</div>
<div>Five</div>
</div>
Any space used by gaps will be accounted for before space is assigned to the flexible length fr tracks, and gaps act for sizing purposes like a regular grid track, however you cannot place anything into a gap. In terms of line-based positioning, the gap acts like a thick line.
Nesting grids
A grid item can become a grid container. In the following example, I have the three-column grid that I created earlier, with our two positioned items. In this case the first item has some sub-items. As these items are not direct children of the grid they do not participate in grid layout and so display in a normal document flow.
Nesting without subgrid

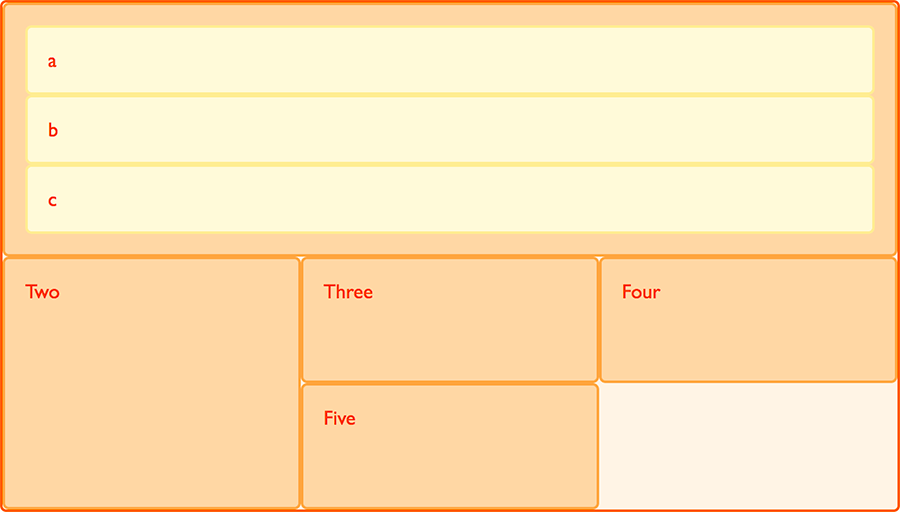

If I set box1 to display: grid I can give it a track definition and it too will become a grid. The items then lay out on this new grid.
.box1 {
grid-column-start: 1;
grid-column-end: 4;
grid-row-start: 1;
grid-row-end: 3;
display: grid;
grid-template-columns: repeat(3, 1fr);
}
<div class="wrapper">
<div class="box box1">
<div class="nested">a</div>
<div class="nested">b</div>
<div class="nested">c</div>
</div>
<div class="box box2">Two</div>
<div class="box box3">Three</div>
<div class="box box4">Four</div>
<div class="box box5">Five</div>
</div>
* {
box-sizing: border-box;
}
.wrapper {
border: 2px solid #f76707;
border-radius: 5px;
gap: 3px;
background-color: #fff4e6;
display: grid;
grid-template-columns: repeat(3, 1fr);
}
.box {
border: 2px solid #ffa94d;
border-radius: 5px;
background-color: #ffd8a8;
padding: 1em;
color: #d9480f;
}
.box1 {
grid-column: 1 / 4;
}
.nested {
border: 2px solid #ffec99;
border-radius: 5px;
background-color: #fff9db;
padding: 1em;
}
In this case the nested grid has no relationship to the parent. As you can see in the example it has not inherited the gap of the parent and the lines in the nested grid do not align to the lines in the parent grid.
Subgrid
In addition to regular grids, subgrid lets us create nested grids that use the track definition of the parent grid.
To use them, we edit the above nested grid example to change the track definition of grid-template-columns: repeat(3, 1fr), to grid-template-columns: subgrid. The nested grid then use the parent grid tracks to lay out items.
.box1 {
grid-column-start: 1;
grid-column-end: 4;
grid-row-start: 1;
grid-row-end: 3;
display: grid;
grid-template-columns: subgrid;
}
Layering items with z-index
Grid items can occupy the same cell, and in this case we can use the z-index property to control the order in which overlapping items stack.
Overlapping without z-index
If we return to our example with items positioned by line number, we can change this to make two items overlap.
<div class="wrapper">
<div class="box box1">One</div>
<div class="box box2">Two</div>
<div class="box box3">Three</div>
<div class="box box4">Four</div>
<div class="box box5">Five</div>
</div>
.wrapper {
display: grid;
grid-template-columns: repeat(3, 1fr);
grid-auto-rows: 100px;
}
.box1 {
grid-column-start: 1;
grid-column-end: 4;
grid-row-start: 1;
grid-row-end: 3;
}
.box2 {
grid-column-start: 1;
grid-row-start: 2;
grid-row-end: 4;
}
The item box2 is now overlapping box1, it displays on top as it comes later in the source order.
Controlling the order
We can control the order in which items stack up by using the z-index property - just like positioned items. If we give box2 a lower z-index than box1 it will display below box1 in the stack.
.wrapper {
display: grid;
grid-template-columns: repeat(3, 1fr);
grid-auto-rows: 100px;
}
.box1 {
grid-column-start: 1;
grid-column-end: 4;
grid-row-start: 1;
grid-row-end: 3;
z-index: 2;
}
.box2 {
grid-column-start: 1;
grid-row-start: 2;
grid-row-end: 4;
z-index: 1;
}
Next steps
In this article, we took a very quick look at the possibilities of grid layouts. Explore and play with the code examples, and then move on to the next part of this guide, where we will really start to dig into the details of CSS grid layout.
